It is one of the most popular outdoor space expansion solutions. It is suitable for large outdoor spaces. The fabric stretches and moves with the aluminum track through a special motor. When it is opened, customers can feel the sunshine and air of nature. After closing, it can be 100% waterproof and effectively block the sun. It is very good in terms of heat insulation effect and aesthetics.
Applicable venue:
◉High-end clubs, star hotels, villas, squares and other outdoor places.
◉Terraces, restaurants, swimming pools, gardens, private residential areas, etc.

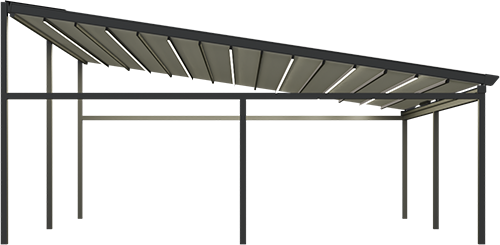

Retractable Roof T700
◉Max size: 10m width x 7.5m extend
◉Color: Grey, White, Customized
◉Material: 6063-T5 Alumium Alloy
◉Fabric: PVC waterproof fabric
Name: Guide Rail
Material: 6063-T5 Alumium Alloy
Specification: 130 x 70 x 1.5 mm
Name: Big Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 76 x 60 x 1.3 mm

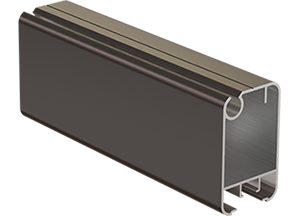

Name: Small Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 60 x 36 x 1.3 mm
Name: Gutter
Material: 6063-T5 Alumium Alloy
Specification: 150 x 143 x 1.8 mm
Name: Post
Material: 6063-T5 Alumium Alloy
Specification: 125 x 90 x 2 mm
Name: Water Baffle
Material: 6063-T5 Alumium Alloy
Specification: 110 x 13.8 x 0.5 mm

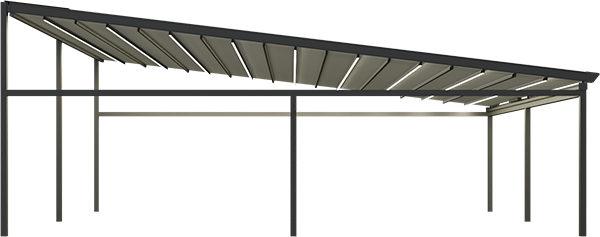

Retractable Roof T900
◉Max size: 10m width x 9.5m extend
◉Color: Grey, White, Customized
◉Material: 6063-T5 Alumium Alloy
◉Fabric: PVC waterproof fabric

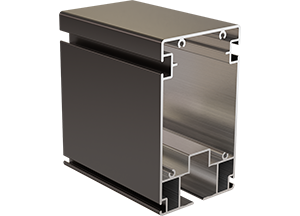

Name: Guide Rail
Material: 6063-T5 Alumium Alloy
Specification: 170 x 98 x 2.5 mm

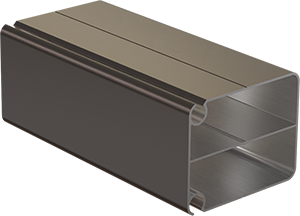

Name: Big Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 76 x 60 x 1.3 mm

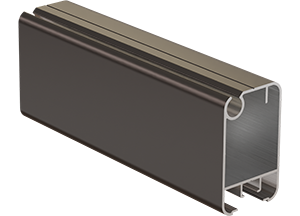

Name: Small Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 60 x 36 x 1.3 mm

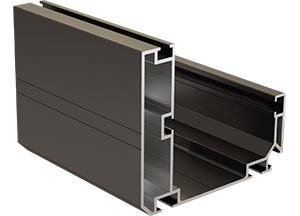

Name: Gutter
Material: 6063-T5 Alumium Alloy
Specification: 150 x 143 x 1.8 mm

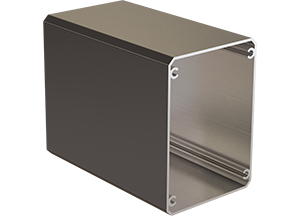

Name: Post
Material: 6063-T5 Alumium Alloy
Specification: 125 x 90 x 2 mm

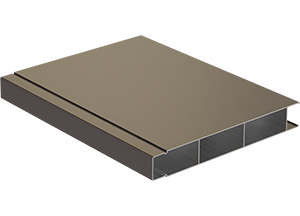

Name: Water Baffle
Material: 6063-T5 Alumium Alloy
Specification: 110 x 13.8 x 0.5 mm
Retractable Roof T1200
◉Max size: 10m width x 7.5m extend
◉Color: Grey, White, Customized
◉Material: 6063-T5 Alumium Alloy
◉Fabric: PVC waterproof fabric

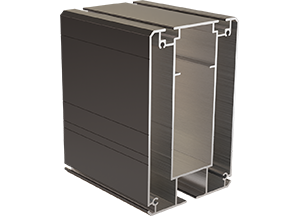

Name: Guide Rail
Material: 6063-T5 Alumium Alloy
Specification: 200 x 130 x 2.5 mm

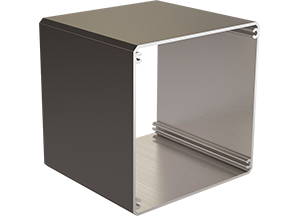

Name: Big Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 80 x 80 x 1.5 mm

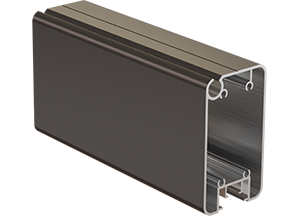

Name: Small Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 80 x 45 x 1.5 mm
Name: Gutter
Material: 6063-T5 Alumium Alloy
Specification: 180 x 150 x 3 mm

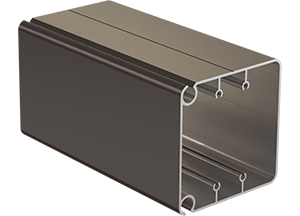

Name: Post
Material: 6063-T5 Alumium Alloy
Specification: 170 x 170 x 3 mm
Name: Water Baffle
Material: 6063-T5 Alumium Alloy
Specification: 110 x 13.8 x 0.5 mm
Specification
| Model | T700 | T900 | T1200 | |
|---|---|---|---|---|
| Regular Color | Grey, White, Customized | |||
| Material | Auminum Alloy | |||
| Size | Max width | 10m | 5m | |
| Max extend | 7.5m | 10m | 12m | |
| Surface | Powder coating / Anodic oxidation | |||
| Bar spacing | 500mm | |||
| Motor | 100V / 220V | |||
| LED light | 3000K / RBG / Customize | |||
| Waterproof | 100% Waterproof | |||
Advantage
PVC fabric is completely waterproof and corrosion-resistant

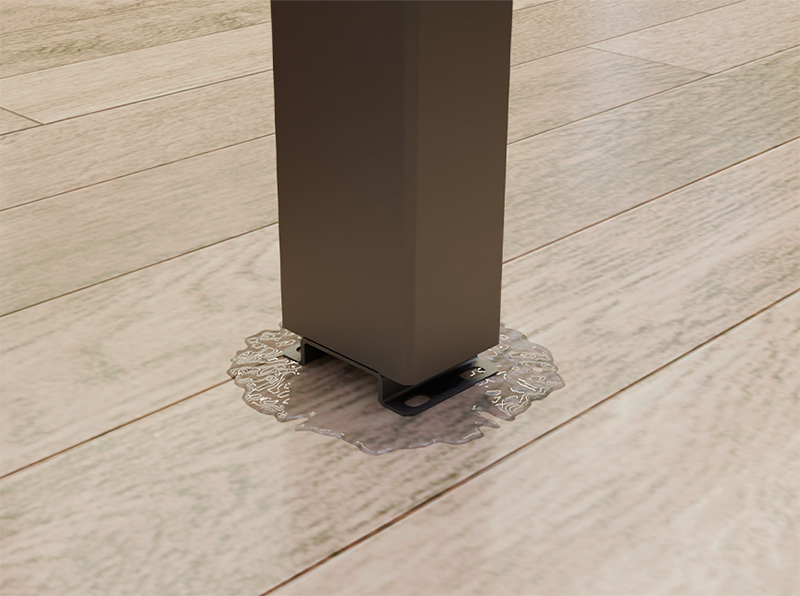

Drainage outlets at the base of hollow posts

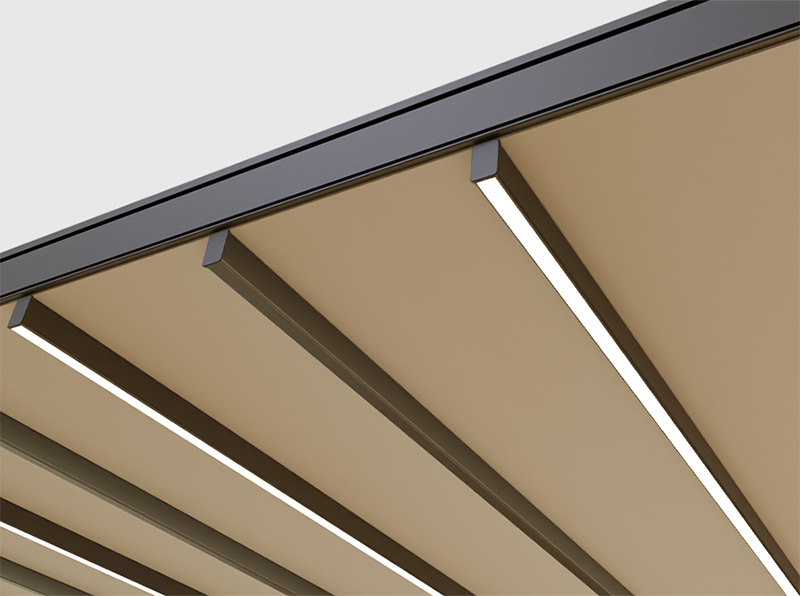

Integrated LED ambient lighting strips

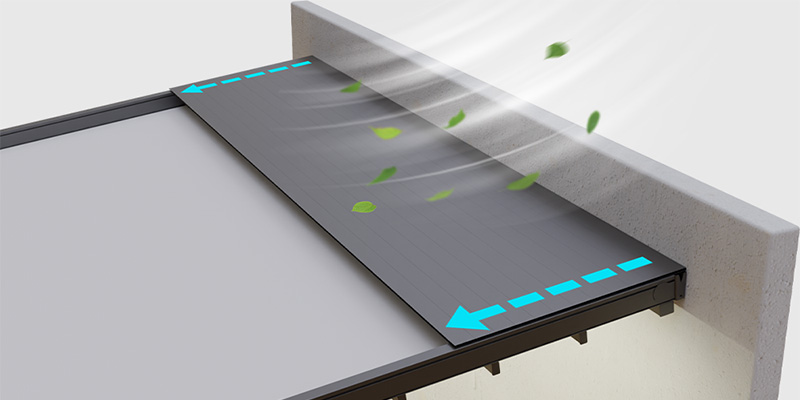

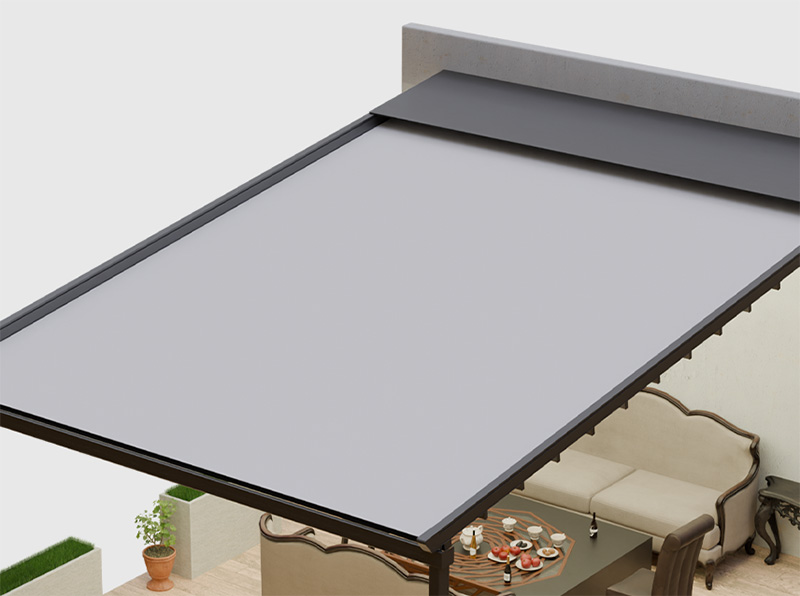

The water guard panel effectively blocks leaves and dust while preventing rainwater damage to the motor and shade fabric, providing reliable protection and maintaining a clean, aesthetically pleasing appearance.
The guide rails feature polyurethane automotive-grade rubber rain seals that are seamlessly integrated with the frame, directing rainwater into the gutter system.

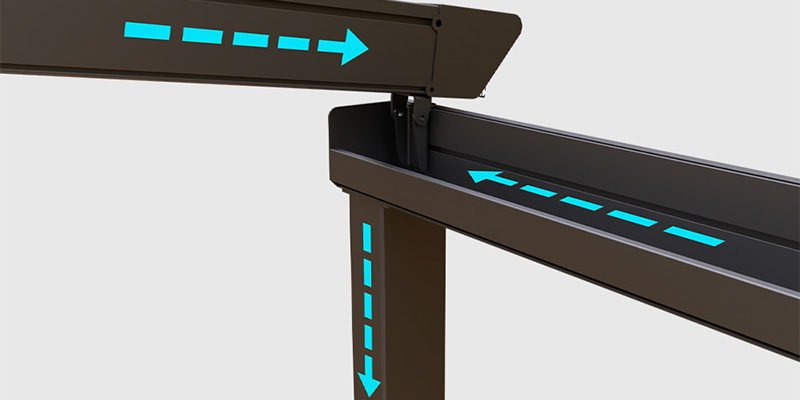

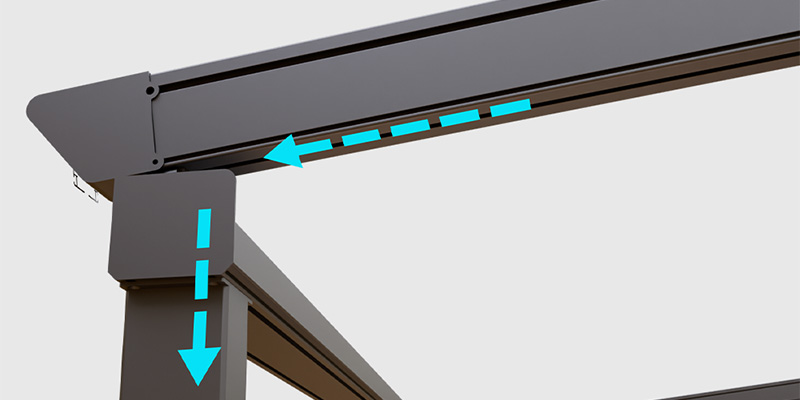

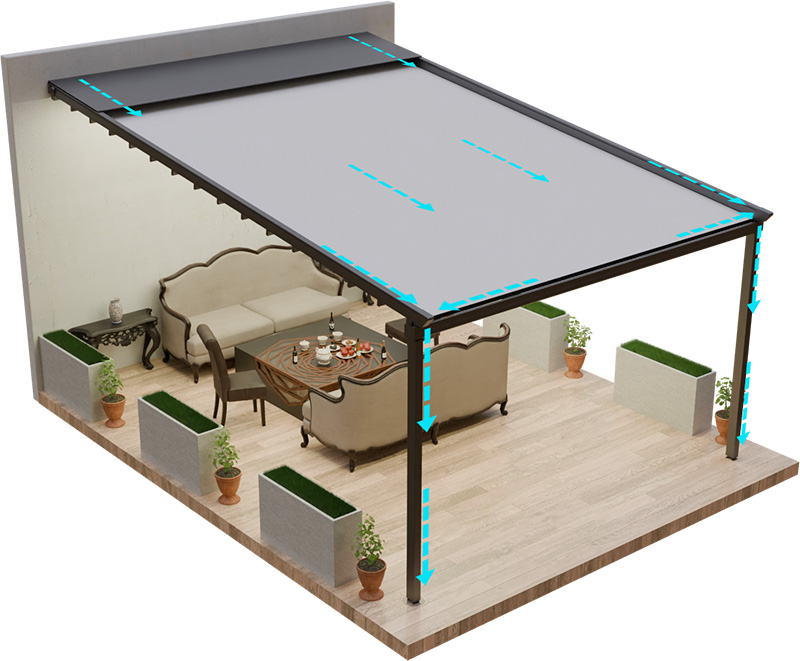

The corrosion-resistant 6063-T5 aluminum alloy guide rails channel water into the gutters, which then route the rainwater through hollow posts for effective perimeter drainage.

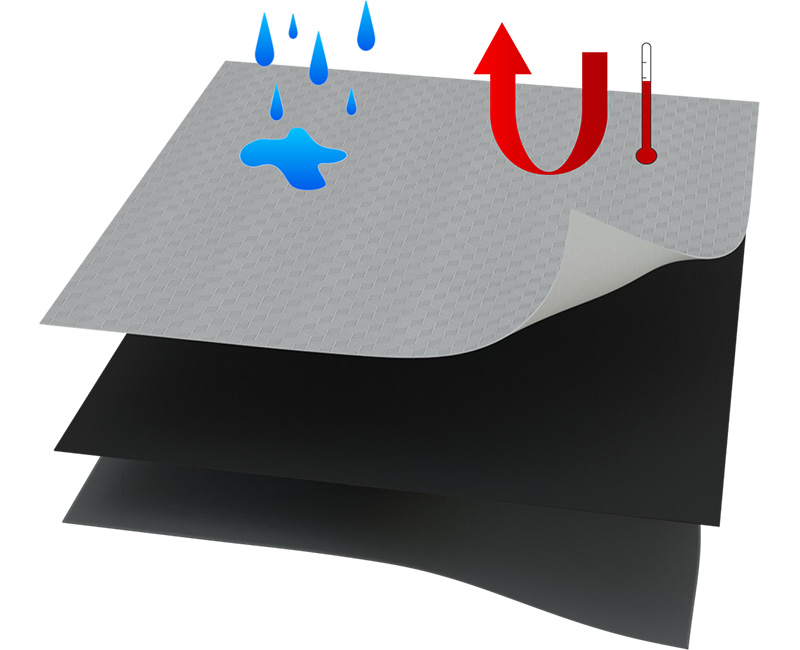

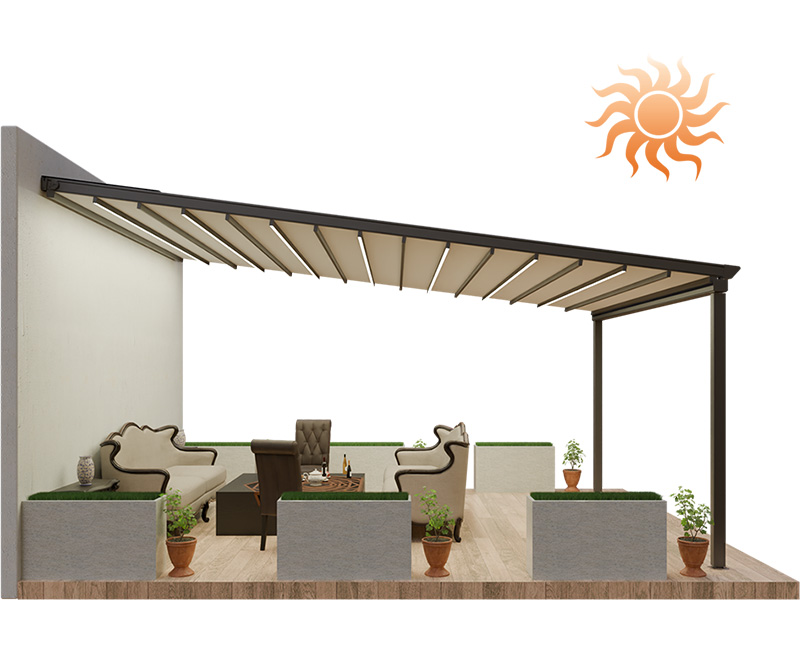

Premium Fabric
The retractable roof, a popular sunshade product in Europe, has been launched after meticulous design and repeated improvements, winning the favor of a wide range of users. The product is both practical and aesthetically pleasing, delivering excellent performance in sun protection, rain resistance, windproofing and UV resistance!
◉Fabric from China and Spain
◉800gr/㎡ (PVC material)
◉Vibrant colors with excellent fade resistance, featuring strong waterproof and fireproof properties
◉More stain-resistant and easy to clean
◉Dual UV-treated surfaces with self-cleaning capability
◉UV-resistant additives enhance durability
◉Reinforced PVC double coating, tear-proof, mildew-resistant & fire-retardant
◉Light-blocking black middle layer
UV blocking
Rain resistance
Wind resistance
Temperature control
Ventilation

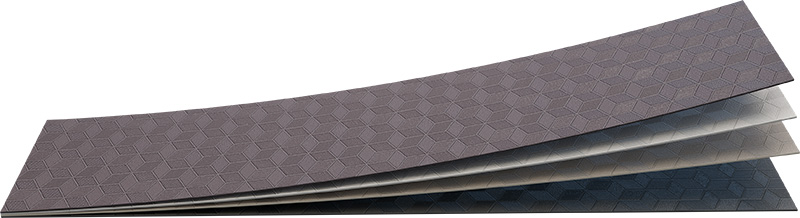

Fabric Specifications
Spanish SauIeda Fabric
| Fabric Material | AT1100dtex high-tenacity polyester |
| Tensile Strength | Warp: 270 daN/5cm |
| Weft: 230 daN/5cm | |
| Fabric Thickness | 0.64 mm |
| Temperature Resistance | -30°C to 70°C |
| Fire Rating | M2 |
| Fabric Weight | 830 g/m² |
Brown
White
Beige
Grey
Premium China Fabric
| Fabric Material | PVC + Polyester |
| Tensile Strength | Warp: 3210 N |
| Weft: 2887 N | |
| Fabric Thickness | 0.68 mm |
| Color Fastness | UV Resistance – Grade 4 |
| Fire Rating | GB/T 5455-2014 Standard |
| Fabric Weight | 835 g/m² |
Brown
White
Beige
Grey
Installation Types
Wall-mounted
Wall-mounted (combined)
Free-standing
Free-standing (combined)

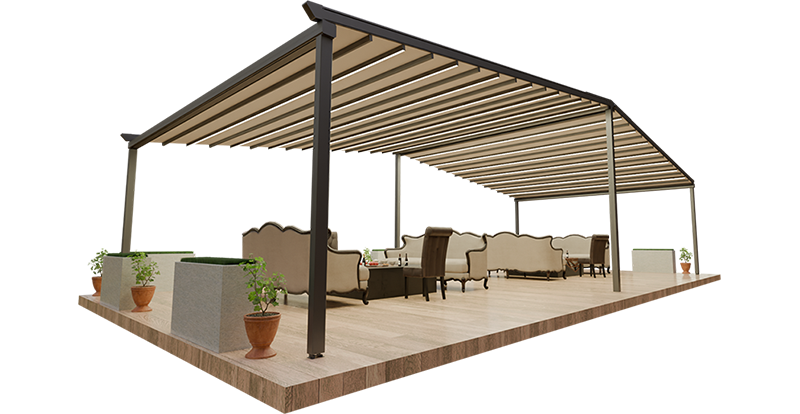

Double-sided

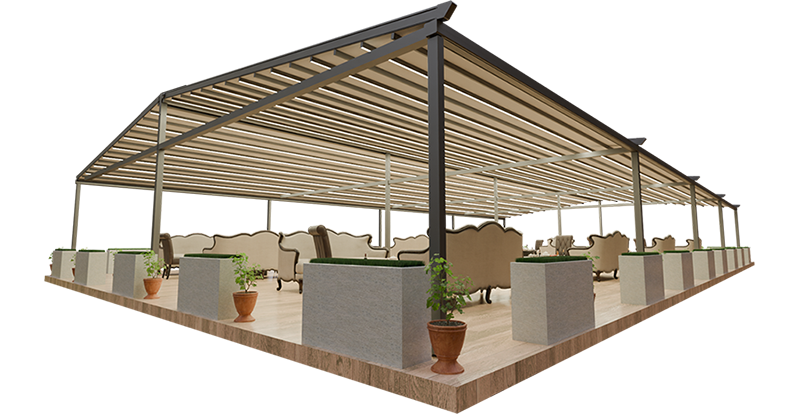

Double-sided (combined)

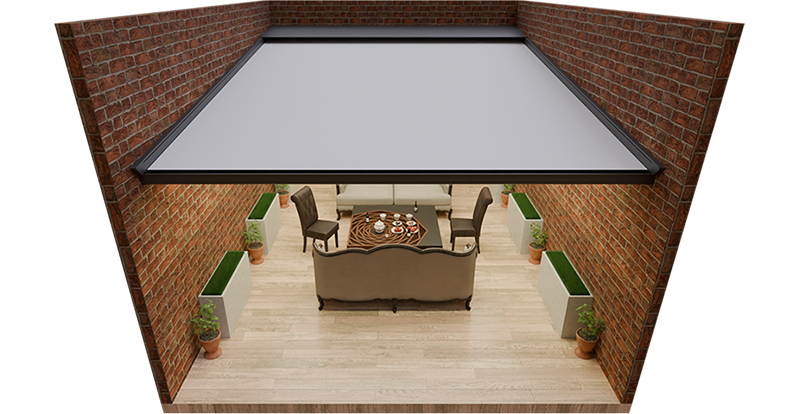

Wall-clamped

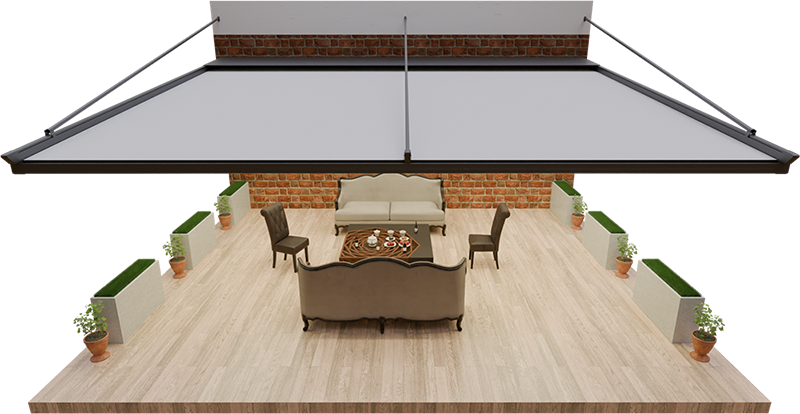

Inclined rod-supported
Motor Introduction
Dooya Motor Introduction
Leading Smart Home and Motor Solutions Provider - Dooya was established in the early 2000s, headquartered in Ningbo, China, with a presence in over 60 countries and regions worldwide. Its products are widely used in more than 100 countries and regions. Dooya has established R&D centers in China, Europe, and the United States, and holds over 130 patents to date.
For over two decades, Dooya has been dedicated to collaborating with global partners, including smart home integrators, architects, and designers. Through innovative products such as smart motors, automated window systems, and intelligent shading solutions, Dooya strives to enhance energy efficiency, improve living comfort, and create smarter, more sustainable living spaces for users worldwide.
