◉Project City - Bao'an District, Shenzhen
◉Products
◉Project Overview
We need to install an electric sunshade canopy for an 800-square-meter constant temperature swimming pool in the community. This is the third project we have undertaken in this community. The project is located in a hot and rainy area. The maximum span in the middle of the swimming pool is 26.7 meters by 24 meters. The client communicated with our designer and requested no pillars in the middle, a stable structure, resistance to strong typhoons, and the swimming pool to be operational throughout the year, 365 days a year.

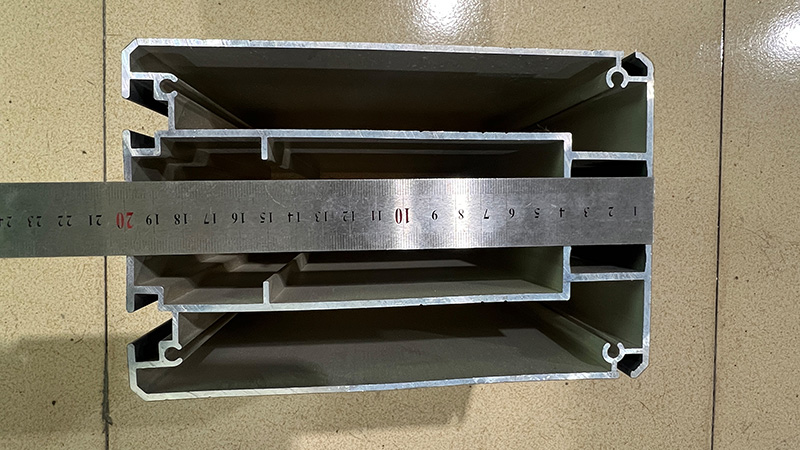

Finally, we adopted a combination scheme of high-strength steel structure main frame, lightweight aluminum alloy crossbars, and heat-insulating PVC fabric, successfully creating a landmark building for the community.

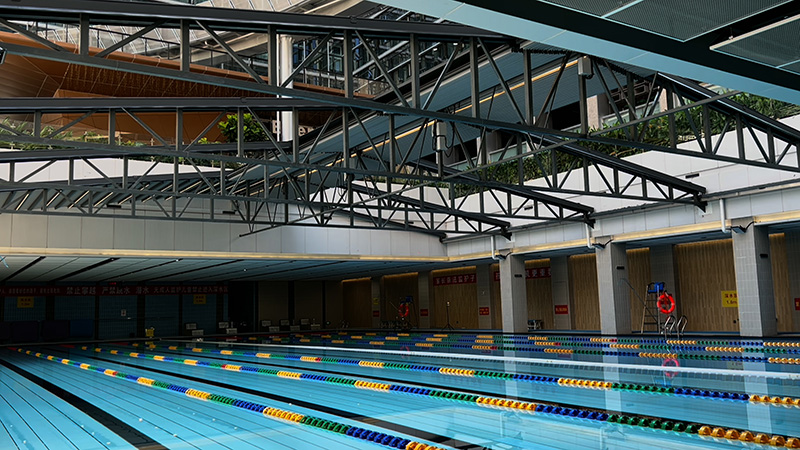

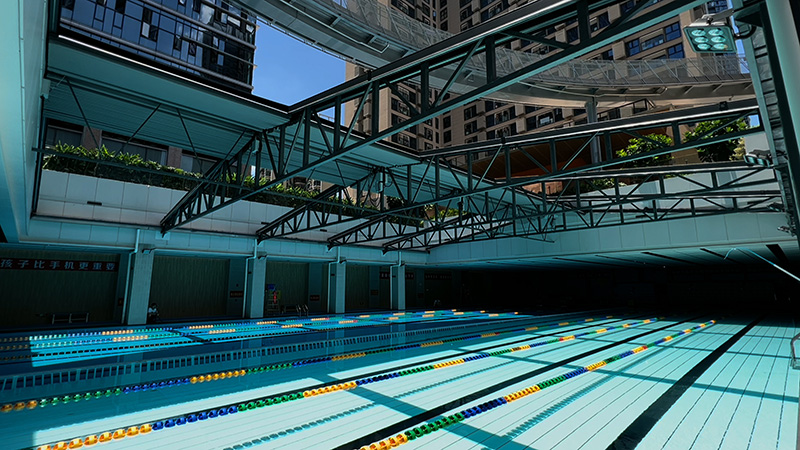

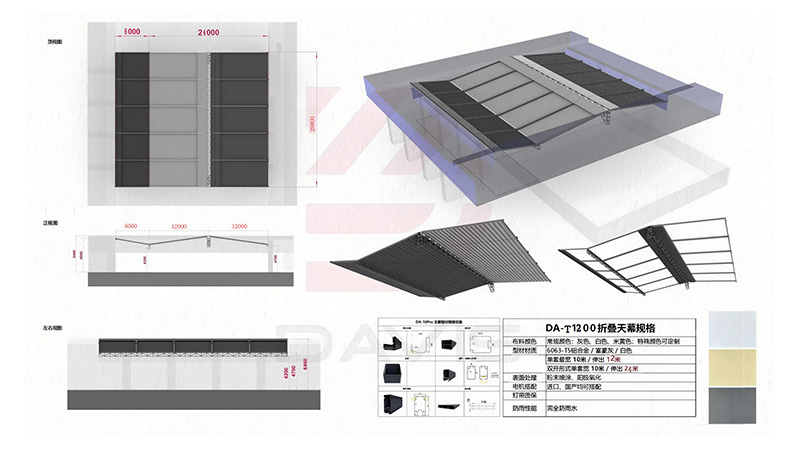

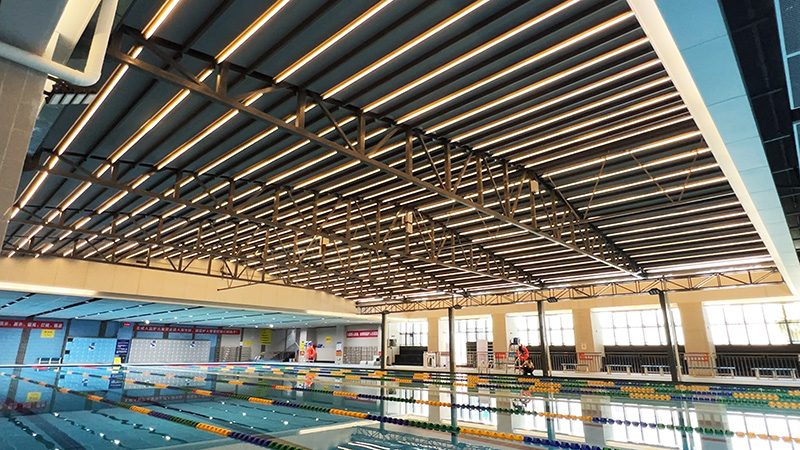

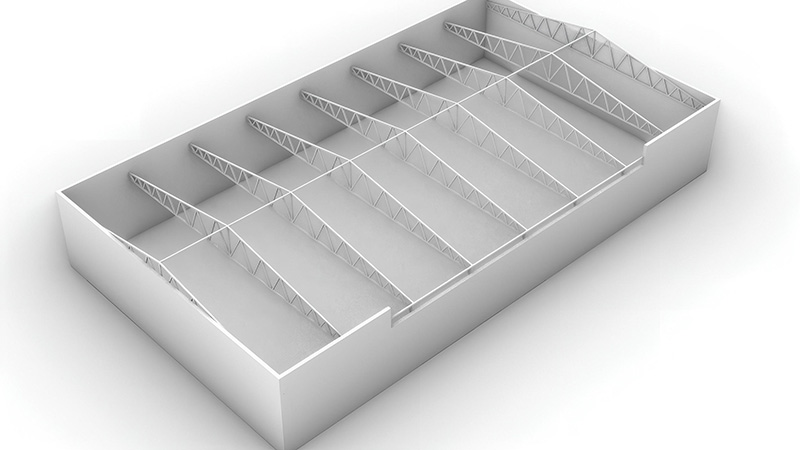

The designer divided the swimming pool into two areas, the rest area and the swimming area. The swimming area has a span of 24 meters, so we used our T1200 track system. This is also the longest track system in China. The client requested no pillars, so we used high-strength steel structure as the crossbeam. The crossbeam is welded in a lattice design, light in weight, and strong in bearing capacity.

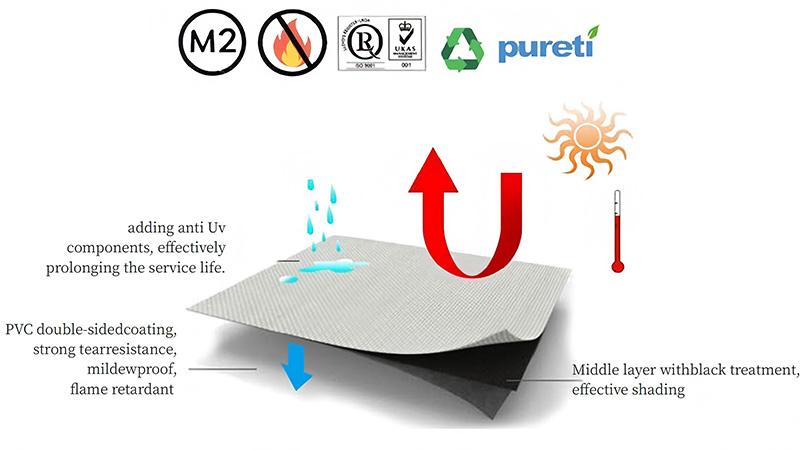

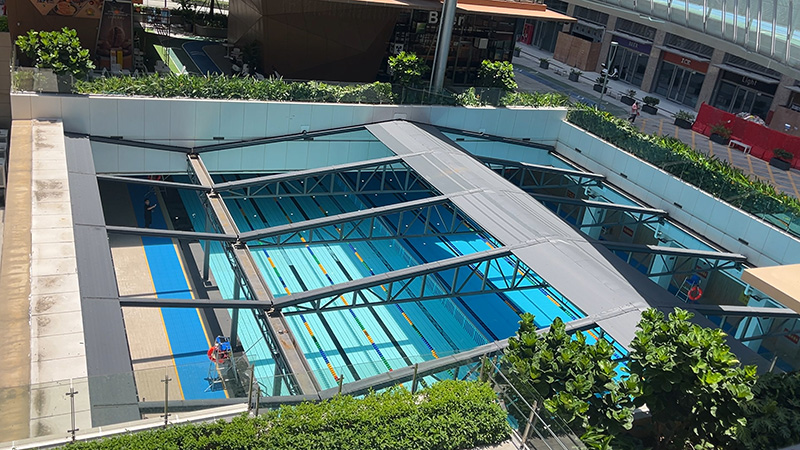

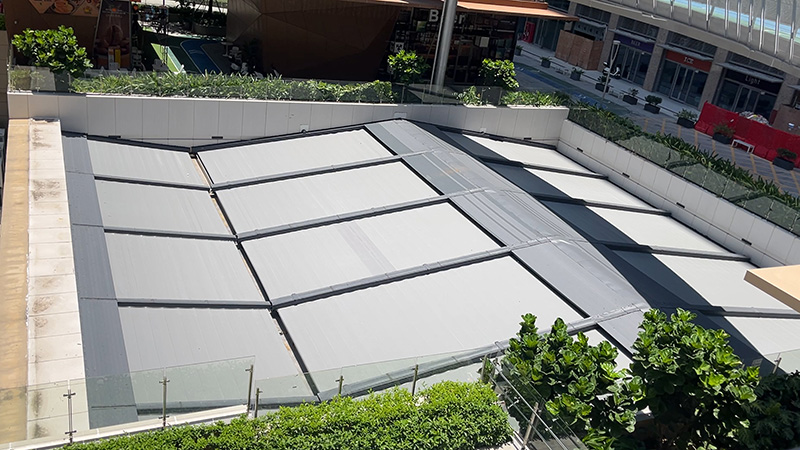

The canopy surface is in a slanted wave shape, and it can drain rainwater in time even in heavy rain. The fabric is designed with three layers, waterproof, heat-insulating, and shading.

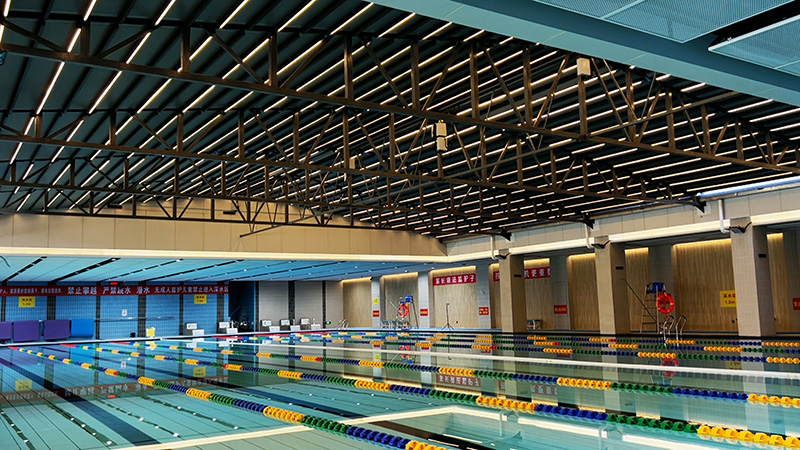

The client also reported that the electricity consumption of the swimming pool is high. The air conditioning in summer, the heating in winter, and the constant temperature of the water are the biggest expenses. This is also the function of the sunshade canopy that can help him reduce electricity consumption. The top also has LED lights, soft and gentle lights, not dazzling.

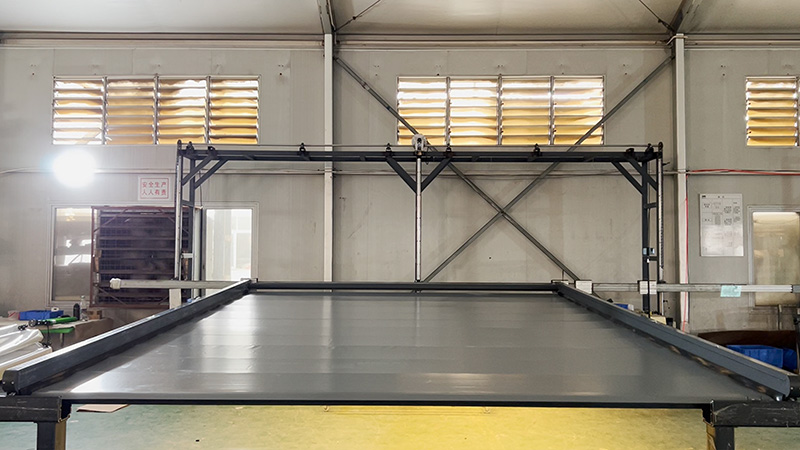

Due to the construction site being in the city center, long-term construction is not possible, so engineers adopted the factory prefabrication method. The steel structure is segmented welded in the factory and then transported to the site for overall welding. The canopy and the track system will be tested before leaving the factory. After the steel frame is welded, the canopy can be installed in sequence.
After the project was delivered, the client was very satisfied with the renovation of the swimming pool. The daily visitor flow was 35% higher than that of other swimming pools in the same area. The large-span design increased the usable area, and the electric canopy significantly reduced the energy consumption of the swimming pool. Regardless of the weather, the swimming pool can operate normally, increasing revenue.
This is also our third successful case in the community. A landmark building can better represent the advantages of our products and the reliability of the project.
